Home > TOGGLE CLAMPS > Stainless steel toggle clamps > No. 6848HNIT Hook type toggle clamp horizontal, black handle
Order
no.
Size F1
[kN]
Weight
[g]
558178 2 1.6 120
558179 3 3.2 330
558180 4 7.0 810


Order
no.

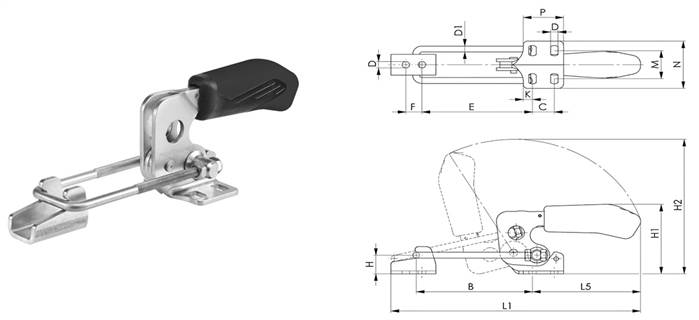

Size B min. B max. C D D1 E min. E max. F H H1 H2 K L1 min. L1 max. L5 M N P
558178 2 42.0 76 13 5.2 4 38.0 72 11 12 47.0 99 6.4 125 159 69 19.5-23.5 38.0 26.0
558179 3 53.5 101 19 6.5 6 48.6 96 14 19 70.0 137 8.0 169 217 94 24.5-32.5 48.0 35.0
558180 4 72.0 127 32 8.5 8 65.0 120 19 26 94.5 168 9.5 214 270 111 35.0-46.0 64.5 53.5
