Home > STANDARD CLAMPING ELEMENTS > Pull-down clamps > No. 6493N Flat clamp for slotted table, horizontal.
Order
no. 		Slot Clamping force
[N] 		Clamping height
[mm] 		Stroke A B Weight
[g]
70144 10 4000 7.5 1.2 46 18 140
70169 12 4000 7.5 1.2 48 18 150
70185 14 4000 7.5 1.2 52 22 162
70342 16 4000 7.5 1.2 48 25 178
70664 18 4000 7.5 1.2 48 25 190

Application:

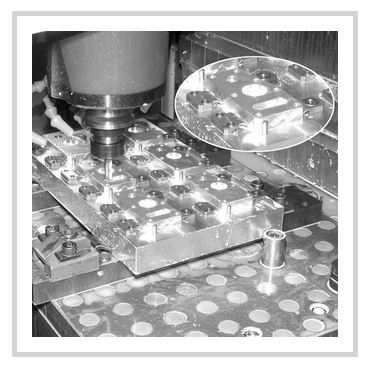

Fastening the horizontal clamp with screws is sufficient to hold and clamp the workpiece. The active part of the clamp consists of three elements - one rigid and two flexible parts.
Clamping force: 4,000 N
Tightening torque: 9 Nm Cam stroke 1.2 mm
A workpiece is clamped in 3 steps:
1) Contact: The flexible clamp elements are positioned against the workpiece.
2) Hold: The flexible clamp elements push the workpiece down until it comes into contact with the rigid clamping fingers.
3) Clamping and positioning: The rigid clamping finger clamps the workpiece.
