Home > HAND TOOLS > Pin wrenches > DIN 3116A Wrench for 2 hole nuts
Order

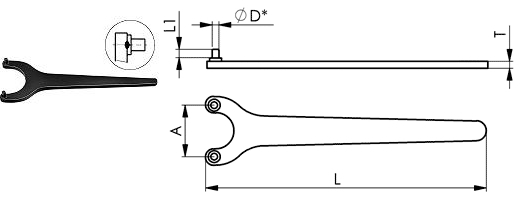

no. 		A dia. D* L L1 T Weight
[g]
44453 13 2,5 90 3 3 27
44461 15 3 90 4 3 27
44479 20 (3) 122 4 4 50
44628 20 4 122 5 4 50
44636 25 3 137 4 4 65
44487 25 (4) 137 5 4 65
44495 30 4 164 5 4 85
44503 35 (4) 180 5 5 120
44644 35 ** 5 180 6 5 120
44511 40 4 167 5 5 120
44529 45 4 187 5 5 145
44537 50 5 198 6 5 175
44545 60 5 213 6 6 220
44552 75 6 243 7 6 330
44560 90 7 270 7,5 6 410
* Pin diameter = nominal diameter -0.1 mm (tolerance class h12)
** Standard size for commercially available angle-grinders and cutters.
( ) DIN extended

Note:
Size 13 has riveted pins. Sizes 13 and 15 without cut-out between pins for M8 and M10 nuts to DIN 547.

On request:
Zinc-plated on request.
