Home > TOGGLE CLAMPS > Stainless steel toggle clamps > 6803NIT Vertical acting toggle clamp, black handle
Order
no. 		Size F1
[kN] 		F2
[kN] 		Clamping screw Weight
[g]
558169 2 0.8 1.2 M6x35 220

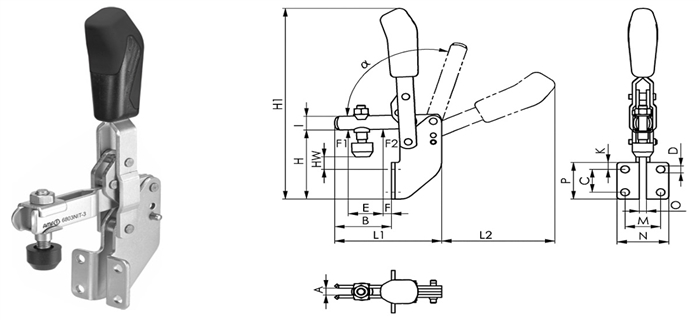

Dimensions:
Order
no. 		Size A B C D E F H H1 HW min. HW max. I K L1 L2 M N O P α α*
558169 2 6 41 20 6.1 25 6 60 167 8 15 12 6 77 81 25.5 37 5 32 105° 60°
* The opening angle can be changed by pressing in a stop pin.
